Vidal's Smart Air Platform

MING - Smart Air Platform
A powerful combination of technologies used to collect, process, and visualize real-time data, analytics, innovation and value.

make the invisible visible

Slide 2

WATCH VIDEO

Company Statement

Vidal Solution is dedicated to “GIVING LIFE” to our customers.

We strive to provide you with “Precision Wellness”, powered by both human wisdom and technological innovation.

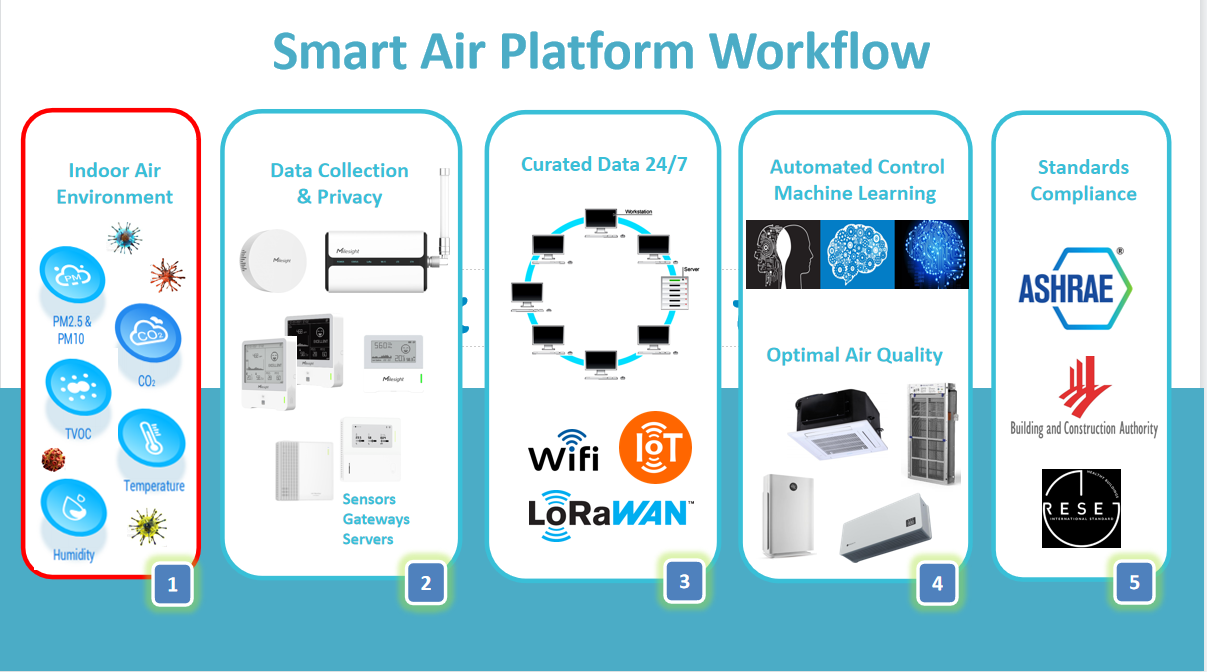

Vidal’s Smart Air Platform is an indoor air quality (IAQ) solution integrating end-to-end air monitoring and air sterilization devices

with data analytics, helping users with intelligent control & management of IAQ as well as standards compliance.

FFC: FCU MESP® Air Sterilizing Purifier

Comprehensively adaptive to fan coils of internal unit, etc. of fluorine and water systems
Wide range of models and sizes to fit various applications

FFC-A3: FCU ULTRA-THIN MESP® AIR STERILIZING PURIFIER

Slim design: easily adapt to all kinds of return air inlet of the fan coil
Wide range of models and sizes to fit various applications

FAH: AHU MESP® Air Sterilizing Purifier

Perfectly replace the traditional bag filter section of AHU
Protect the AHU and prevent the air-conditioning system from being dirty and clogged
Flexible Installation: installation in air duct is acceptable

FAD: AIR DUCT MESP® STERILIZING PURIFIER

Fit in running environment of high humidity
Different models for different air volume
Flat module for easy installation

FAC: Intelligent Clean Air Purification System

Specially developed for the large space ventilation system
Suitable for railway, metro, and airport terminals with rapid disturbance and uneven distribution of air pollution

MESP® Portable Air Sterilizing Purifier KJ300

Power (W): 55
Voltage (V): 110-240
Capacity (CFM): 247
CADR(m³/h): 300
Area of use: Up to 25sqm
Viruses Kill Rate: 99.99%+
Bacteria Kill Rate: 99.96%
Particle removal Rate: 99%+
Minimum removable particle size: 0.01μm
Additional M8 methanal ﬁlter: Optional

MESP® Portable Air Sterilizing Purifier KJ400

Power (W): 55
Voltage (V): 110-240
Capacity (CFM): 336
CADR(m³/h): 400
Area of use: Up to 48sqm
Viruses Kill Rate: 99.99%+
Bacteria Kill Rate: 99.96%
Particle removal Rate: 99%+
Minimum removable particle size: 0.01μm
Mobile APP control: Yes (IOS/Android APP with Tuya WIFI)
Additional M8 methanal ﬁlter: Optional

MESP® Portable Air Sterilizing Purifier KJ500

Power (W): 55
Voltage (V): 110-240
Capacity (CFM): 353
CADR(m³/h): 500
Area of use: Up to 60sqm
Viruses Kill Rate: 99.99%+
Bacteria Kill Rate: 99.96%
Particle removal Rate: 99%+
Minimum removable particle size: 0.01μm
Additional M8 methanal ﬁlter: Optional

MESP® Portable Air Sterilizing Purifier KJ750

Power (W): 65
Voltage (V): 220-240
Capacity (CFM): 441
CADR(m³/h): 720
Area of use: Up to 86sqm
Viruses Kill Rate: 99.99%+
Bacteria Kill Rate: 99.96%
Particle removal Rate: 99%+
Minimum removable particle size: 0.01μm
Mobile APP control: Yes (IOS/Android APP with Tuya WIFI)

MESP® Ceiling-Mounted Air Sterilizing Purifier FSA550

Power (W): 65
Voltage (V): 220-240
Capacity (CFM): 750
CADR(m³/h): 550
Area of use: Up to 65sqm
Viruses Kill Rate: 99.99%+
Bacteria Kill Rate: 99.96%
Particle removal Rate: 99%+
Minimum removable particle size: 0.01μm
Mobile APP control: Yes (IOS/Android APP with Tuya WIFI)
Additional M8 methanal ﬁlter: Optional

MESP® Ceiling-Mounted Air Sterilizing Purifier FSA650

Power (W): 30/25/20/15/13
Voltage (V): 100-240~/50-60
CADR(m³/h): 550
Area of use: Up to 65sqm
Viruses Kill Rate: 99.99%+
Bacteria Kill Rate: 99.96%
Particle removal Rate: 99%+
Minimum removable particle size: 0.01μm
Control mode: Graffiti APP / RS485 / Remote control
Additional M8 methanal ﬁlter: Optional

FFA: MESP® FRESH AIR STERILIZING PURIFIER

Voltage (V): 220~240 / 50~60
MESP filter of the system can purify PM2.5 (98.1% removal rate) and disinfect
Thin body design for easy installation
PRAX solid-state power supply
Three types of models with different fresh air rates
Standard Configuration: Fresh Air Controller (Touch-button / WiFi Microphone)

LoRaWAN® Indoor Ambience Monitoring Sensor AM103 / AM103L

Technology: LoRaWAN®
Frequency: CN470/IN865/RU864/EU868/ US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16dBm(868 MHz)/ 22dBm(915 MHz)/ 19dBm(470 MHz)
Sensitivity: -137dBm @300bps
Work Mode: OTAA/ABP Class A
Power Supply: 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life (10 min interval, 25°C):
- AM103: Around 3 years
- AM103L: Around 4 years
Ingress Protection: IP30
Dimension: 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation: 3M Tape Mounting, Wall Screw Mounting
Regulatory: CE, RoHS

LoRaWAN® Indoor Ambience Monitoring Sensor AM308

Technology: LoRaWAN®
Frequency: CN470/RU864/IN865/EU868/ US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16dBm(868MHz)/ 22dBm(915MHz)/ 19dBm(470MHz)
Sensitivity: -137dBm @300bps
Work Mode: OTAA/ABP Class A
Power Supply:
- 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
- 5V/1A by Type-C Port
Battery Life (10 min interval): Around 1 Year
Ingress Protection: IP30
Dimension: 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation: 3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting
Regulatory: CE, RoHS

LoRaWAN® Indoor Ambience Monitoring Sensor AM319

Technology: LoRaWAN®
Frequency: CN470/RU864/IN865/EU868/ US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16dBm(868MHz)/ 22dBm(915MHz)/ 19dBm(470MHz)
Sensitivity: -137dBm @300bps
Work Mode: OTAA/ABP Class C
Power Supply: 5V/1A by Type-C Port
Ingress Protection: IP30
Dimension: 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation: 3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting
Regulatory: CE, RoHS

Mini LoRaWAN Gateway
UG63

Power (W): 2.2-3.3
CPU: 528 MHz, ARM Cortex-A7
Memory: 256 MB DDR4 RAM
Flash: 4 GB eMMC
Antenna: 2 × Internal Antennas
Interface: Ethernet
Channel: 8 (Half/Full-duplex)
Output Power: 27dBm Max
Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ingress Protection: IP30
Dimensions: Ф 115 x 21 mm (Ф 4.52 x 0.83 in)
Installation: Desktop, Wall or Ceiling Mounting

Semi-Industrial LoRaWAN® Gateway UG65

Power (W): 2.9-4.2
CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory: 512 MB DDR4 RAM
Flash: 8 GB eMMC
Antenna: Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector)
Interface: Ethernet, Wi-Fi, Cellular
Channel: 8 (Half/Full-duplex)
Output Power: 27dBm Max
Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Supports up to 200 end devices
Ingress Protection: IP65
Dimensions: 180 x 110 x 56.5 mm
Installation: Desktop, Wall or Pole Mounting

Indoor Air Quality Monitor UNOlite

Operating Condition: 0°C to 50°C, 10-90% RH
Power Supply:
- 12-24 VDC, 24 VAC
- Power adapter 12V/1A
Installation: Drywall mount, Electrical box mount
Protocol: Modbus RTU / BACnet MS/TP (Select via DIP switch)
Connection: RS485, BLE5.1
7-in-1 parameters: PM1, PM2.5, PM10, CO2, TVOC, Temperature, and Humidity

Indoor Air Quality Monitor UNOnext

Operating Condition: 0°C to 50°C, 10-90% RH, IP20
Power Supply:
- 9-24VDC+/-10%
- Power adapter 12V/1A
Power Consumption: Max 500mA@12VDC
Dimensions: 14.2cm(L) x 6.8cm(W) x 4.2 cm(D)
Protocol: Modbus RTU / BACnet MS/TP (Select via DIP switch)
Connection: RS485, Wi-Fi 2.4G 802.11 b/g/n, BLE5.1
Certification: CE, FCC/IC, NCC, JRF, WPC/ETA, SIRIM,
IMDA, NBTC, VNTA
10-in-1 parameters: PM1, PM2.5, PM10, CO2, TVOC, Temperature, Humidity, HCHO, O3, and Illuminance

Semi-Industrial LoRaWAN® Gateway UG65

Ethernet:10/100/1000 Mbps, 3x RJ45
Vibration: IEC 60068 3 64, 0.5Grms, Random 5~500 Hz, 40 Mins /Axis
Operating Temperature: 0°C~50 50°C
Operating Humidity: 5%~95% (Non
condensing)
Storage Temperature: -20°C~70 70°C
Dimensions (W x H x D): 164.5mm x 30mm x 143mm (6.48″ x 1.18″ x 5.63″)
Weight: 0.9 Kg
