Commercial Spaces Air Purifier

Commercial Air Purifier

MESP® AIR CONDITIONING STERILIZING PURIFIER

- Turn Any Air Conditioning Systems Into Purifiers -

Air Conditioning Sterilization Purification refers to purification of indoor air by central treatment and systematic airflow organization instead of independent discrete sterilizing purification. MESP® Air Conditioning Sterilization Purification System purifies the indoor air by various air purification equipment and automatically work with HVAC system to effectively remove particulate matters, pollen, allergen and other pollutants as well as kill bacteria and viruses for perfect air quality. AirQualty Technology provides a full range of MESP® Air Conditioning Sterilizing Purifiers adapting to air handling units(AHU), fan coil units(FCU), and air ducts, etc. They can be easily used in any new construction or retrofit projects.

FEATURES

MESP® Technology

Remove Methanal & Dust, Kill viruses & Bacteria

Fresh Anion

Low Consumption and Energy Conservation

Ultra-low Ozone

Washable Filter

Ultra-low Air Resistence

Product Video

Product Highlights

Kill 99.99% of viruses(including COVID-19) and 99.96% of bacteria
High-efficiently remove airborne particles
10 years washable filter
Auto on/off work with HVAC system
No space occupation
Low pressure drop thus energy efficient
Ultha-low ozone, no arc and spark
Releasing negative ion which is beneficial to the health
High usability with wide temperature and humidity range
High flame retardant
Easy to install and maintain

H1N1 Virus Killing Efficacy The test report from SGS shows 99.99% of H1N1 virus has been killed by KJ MESP portable air purifiers.

COVID-19 Virus Killing Efficacy Through the course of the three air flow passes conducted and average of 99.99% of SARS-COV-2 (the virus that causes COVID-19) reduction was observed.

ALL MESP HVAC MODELS

FFC: FCU MESP® Air Sterilizing Purifier

Comprehensively adaptive to fan coils of internal unit, etc. of fluorine and water systems
Wide range of models and sizes to fit various applications

FFC-A3: FCU ULTRA-THIN MESP® AIR STERILIZING PURIFIER

Slim design: easily adapt to all kinds of return air inlet of the fan coil
Wide range of models and sizes to fit various applications

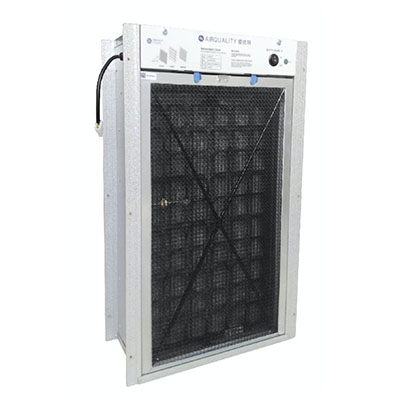

FAH: AHU MESP® Air Sterilizing Purifier

Perfectly replace the traditional bag filter section of AHU
Protect the AHU and prevent the air-conditioning system from being dirty and clogged
Flexible Installation: installation in air duct is acceptable

FAD: AIR DUCT MESP® STERILIZING PURIFIER

Fit in running environment of high humidity
Different models for different air volume
Flat module for easy installation

FAC: Intelligent Clean Air Purification System

Specially developed for the large space ventilation system
Suitable for railway, metro, and airport terminals with rapid disturbance and uneven distribution of air pollution

MESP® Ceiling-Mounted Air Sterilizing Purifier FSA550

Power (W): 65
Voltage (V): 220-240
Capacity (CFM): 750
CADR(m³/h): 550
Area of use: Up to 65sqm
Viruses Kill Rate: 99.99%+
Bacteria Kill Rate: 99.96%
Particle removal Rate: 99%+
Minimum removable particle size: 0.01μm
Mobile APP control: Yes (IOS/Android APP with Tuya WIFI)
Additional M8 methanal ﬁlter: Optional

MESP® Ceiling-Mounted Air Sterilizing Purifier FSA650

Power (W): 30/25/20/15/13
Voltage (V): 100-240~/50-60
CADR(m³/h): 550
Area of use: Up to 65sqm
Viruses Kill Rate: 99.99%+
Bacteria Kill Rate: 99.96%
Particle removal Rate: 99%+
Minimum removable particle size: 0.01μm
Control mode: Graffiti APP / RS485 / Remote control
Additional M8 methanal ﬁlter: Optional

FFA: MESP® FRESH AIR STERILIZING PURIFIER

Voltage (V): 220~240 / 50~60
MESP filter of the system can purify PM2.5 (98.1% removal rate) and disinfect
Thin body design for easy installation
PRAX solid-state power supply
Three types of models with different fresh air rates
Standard Configuration: Fresh Air Controller (Touch-button / WiFi Microphone)
