IAQ Sensors & Gateways

Improve Your Environment by Identifying the Sources of Poor Indoor Air Quality

Accurate indoor air quality monitoring alerts residents and building owners to the level and nature of pollution, enabling corrective action. Inadequate ventilation is crucial, as poorly ventilated spaces (along with environmental factors such as temperature and humidity) can amplify the pollutant concentration.

Below is a complete list of the most relevant pollutants, the sensor type used for monitoring, the most common sources of pollution, and the possible health impacts.

Pollutant: Carbon Dioxide (CO2)

Major Sources: Sick Building Syndrome (SBS), Excessive Building Occupancy and Inadequate Ventilation
Potential Health Effects: Fatigue; Eye, Nose and Throat Irritation; Headaches; Chest Discomfort; Respiratory Tract Symptoms

Pollutant: Organic Chemicals (VOC)

Major Sources: Aerosol Sprays, Solvents, Glues, Cleaning Agents, Pesticides, Paints, Moth Repellents, Air Fresheners, Dry cleaned Clothing and Treated Water
Potential Health Effects: Eye, Nose and Throat Irritation; Headaches; Loss of Coordination; Damage to Liver, Kidney and Brain; Various Types of Cancer

Pollutant: Formaldehyde (HCHO)

Major Sources: Pressed Wood Products e.g. plywood and MDF; Furnishings; Wallpaper; Durable Press Fabrics
Potential Health Effects: Eye, Nose and Throat Irritation; Headache; Allergic Reactions; Cancer

Pollutant: Particulate Matter (PM2.5, PM10)

Major Sources: Cooking, burning candles, fireplaces, smoking, outdoor air pollution.
Potential Health Effects: Respiratory issues, asthma attacks, lung cancer, cardiovascular problems

FEATURES

Product Highlights

3 Sensors in 1
2.13 -Inch E-Ink Screen (AM103)
Vivid Emoticon Indication
Wireless Installation with Anti-Theft Protection
Support Data Storage and Retransmission

Product Highlights

9 Sensors in 1
4.2 Inch E-ink Screen
Vivid Emoticon Indication
Traffic Light Status Indicator

LoRaWAN Gateway

Mini LoRaWAN® UG63 Gateway

High-Performance NXP industrial processor and SX1302 chip
Support Listen Before Talk (LBT) for downlink
Small in size for easy carrying & deployment
Desktop, wall or ceiling mounting support
Cover the blind spot of LoRaWAN® network by transmitting data to UG56/UG65/UG67 controller gateway

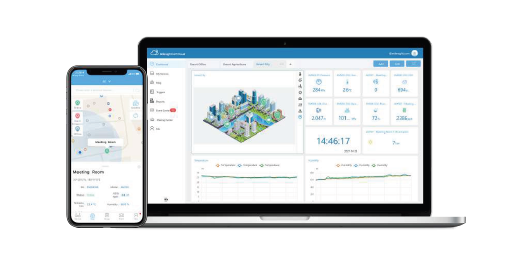

Milesight DeviceHub & IoT Cloud provide easy and centralized management of remote devices
Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
Compatible with mainstream network servers like The Things Industries, ChirpStack, etc.
Built-in network server and MQTT/HTTP/HTTPS API for easy integration
Support 20-50 end nodes with embedded NS for small deployment

Semi-Industrial LoRaWAN® UG65 Gateway

Quad-core industrial processor with big memory
Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
IP65 enclosure and industrial design for parts of outdoor environment applications like eaves
Multi backhaul backups with Ethernet, cellular (4G/3G) and Wi-Fi
Milesight DeviceHub and IoT Cloud provide easy and centralized management of remote devices
Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
Compatible with mainstream network servers like The Things Industries, ChirpStack, Actility, Everynet, etc.
Detect and analyze the noise level and provide an intuitive diagram for deployment
Built-in network server and MQTT/HTTP/HTTPS API for easy integration
Embedded Python SDK for user’s secondary development
Fast and user-friendly programming by Node-RED development tool

Product Specifications

LoRaWAN® Indoor Ambience Monitoring Sensor AM103 / AM103L

Technology: LoRaWAN®
Frequency: CN470/IN865/RU864/EU868/ US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16dBm(868 MHz)/ 22dBm(915 MHz)/ 19dBm(470 MHz)
Sensitivity: -137dBm @300bps
Work Mode: OTAA/ABP Class A
Power Supply: 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life (10 min interval, 25°C):
- AM103: Around 3 years
- AM103L: Around 4 years
Ingress Protection: IP30
Dimension: 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation: 3M Tape Mounting, Wall Screw Mounting
Regulatory: CE, RoHS

LoRaWAN® Indoor Ambience Monitoring Sensor AM308

Technology: LoRaWAN®
Frequency: CN470/RU864/IN865/EU868/ US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16dBm(868MHz)/ 22dBm(915MHz)/ 19dBm(470MHz)
Sensitivity: -137dBm @300bps
Work Mode: OTAA/ABP Class A
Power Supply:
- 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
- 5V/1A by Type-C Port
Battery Life (10 min interval): Around 1 Year
Ingress Protection: IP30
Dimension: 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation: 3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting
Regulatory: CE, RoHS

LoRaWAN® Indoor Ambience Monitoring Sensor AM319 (L)

Technology: LoRaWAN®
Frequency: CN470/RU864/IN865/EU868/ US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16dBm(868MHz)/ 22dBm(915MHz)/ 19dBm(470MHz)
Sensitivity: -137dBm @300bps
Work Mode: OTAA/ABP Class C
Power Supply: 5V/1A by Type-C Port
Ingress Protection: IP30
Dimension: 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation: 3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting
Regulatory: CE, RoHS

Mini LoRaWAN Gateway
UG63

Power (W): 2.2-3.3
CPU: 528 MHz, ARM Cortex-A7
Memory: 256 MB DDR4 RAM
Flash: 4 GB eMMC
Antenna: 2 × Internal Antennas
Interface: Ethernet
Channel: 8 (Half/Full-duplex)
Output Power: 27dBm Max
Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ingress Protection: IP30
Dimensions: Ф 115 x 21 mm (Ф 4.52 x 0.83 in)
Installation: Desktop, Wall or Ceiling Mounting

Semi-Industrial LoRaWAN® Gateway UG65

Power (W): 2.9-4.2
CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory: 512 MB DDR4 RAM
Flash: 8 GB eMMC
Antenna: Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector)
Interface: Ethernet, Wi-Fi, Cellular
Channel: 8 (Half/Full-duplex)
Output Power: 27dBm Max
Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Supports up to 200 end devices
Ingress Protection: IP65
Dimensions: 180 x 110 x 56.5 mm
Installation: Desktop, Wall or Pole Mounting

Indoor Air Quality Monitor UNOlite

Operating Condition: 0°C to 50°C, 10-90% RH
Power Supply:
- 12-24 VDC, 24 VAC
- Power adapter 12V/1A
Installation: Drywall mount, Electrical box mount
Protocol: Modbus RTU / BACnet MS/TP (Select via DIP switch)
Connection: RS485, BLE5.1
7-in-1 parameters: PM1, PM2.5, PM10, CO2, TVOC, Temperature, and Humidity

Indoor Air Quality Monitor UNOnext

Operating Condition: 0°C to 50°C, 10-90% RH, IP20
Power Supply:
- 9-24VDC+/-10%
- Power adapter 12V/1A
Power Consumption: Max 500mA@12VDC
Dimensions: 14.2cm(L) x 6.8cm(W) x 4.2 cm(D)
Protocol: Modbus RTU / BACnet MS/TP (Select via DIP switch)
Connection: RS485, Wi-Fi 2.4G 802.11 b/g/n, BLE5.1
Certification: CE, FCC/IC, NCC, JRF, WPC/ETA, SIRIM,
IMDA, NBTC, VNTA
10-in-1 parameters: PM1, PM2.5, PM10, CO2, TVOC, Temperature, Humidity, HCHO, O3, and Illuminance

Embedded Industrial Computer UNOcentral

300,000 sets / 3 yrs historical data with date and time stamp archiving
Supported BACnet IP and HTTP API for developers and system integrators
Ethernet:10/100/1000 Mbps, 3x RJ45
Vibration: IEC 60068 3 64, 0.5Grms, Random 5~500 Hz, 40 Mins /Axis
Operating Temperature: 0°C~50 50°C
Operating Humidity: 5%~95% (Non
condensing)
Storage Temperature: -20°C~70 70°C
Dimensions (W x H x D): 164.5mm x 30mm x 143mm (6.48″ x 1.18″ x 5.63″)
Weight: 0.9 Kg

#
